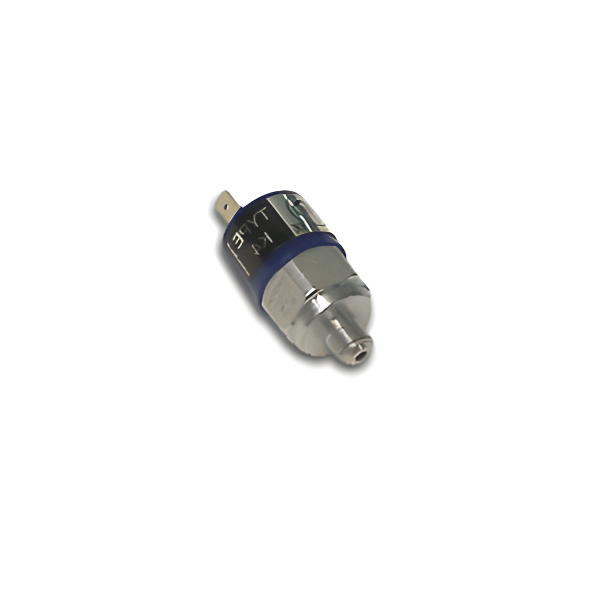

Pressure Switch

These may be used to control the pressure of liquids, or gases. The expansion of the diagram actuates the contact.

Learn more at DropsA.com
Add to quote
SKU: N/A Category:

Description

Key features:

  • Max. Voltage 42V
  • Max. contact rating 100VA
  • Operating temp. -30°C to +120°C (-22°F to +248°F)
  • Mechanical duration (10)7
  • Protection IP54
  • Max. safe pressure 30MPa (300 bar)(4300 psi.)
  • Weight 0,05 Kg(.11 lb)
  • Connection: M10x1

Additional information

Working Pressure

0,5 Bar (7.3 Psi), 15 Bar (217 Psi), 20 Bar (290 Psi), 3 Bar (44.1 Psi), 30 Bar (450 Psi), 300 Bar (4351 Psi)
